Views: 0 Author: Site Editor Publish Time: 2026-05-27 Origin: Site
Choosing laminated plywood by color, gloss, or sheet price alone is a costly shortcut. A panel may look clean in the warehouse but chip during cutting, swell at exposed edges, peel near a sink, or bend under shelf loads after installation. Laminated plywood is not one fixed material; it is a plywood core combined with a decorative or protective surface, and both parts must match the environment.
This guide explains how to choose Laminated Plywood sheets by structure, moisture exposure, surface wear, thickness, safety documentation, and installation risk. The goal is to help you select the right panel for cabinets, wet areas, commercial furniture, or outdoor decking.

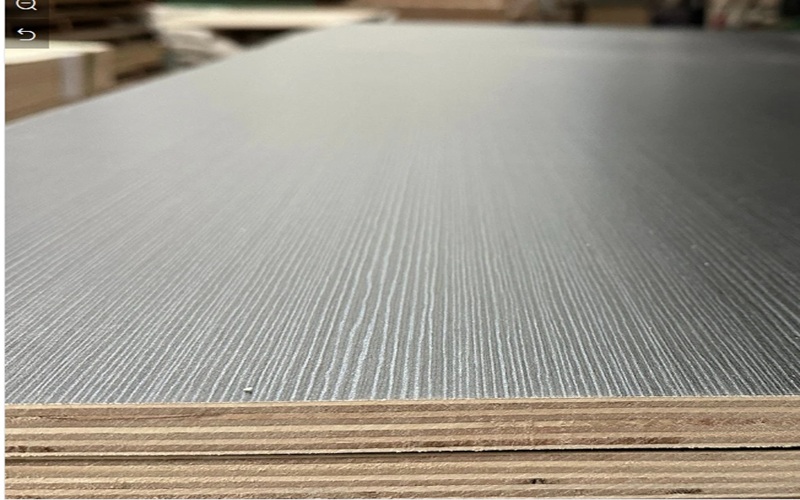

Every set of Laminated Plywood sheets has two performance zones: the plywood core and the surface layer. The core is built from veneer layers bonded with adhesive, with the grain direction alternated through cross-lamination. This structure gives Laminated Plywood sheets better dimensional stability than solid wood in cabinet sides, doors, shelves, and wall panels. In Laminated Plywood sheets, the surface provides the look and the first line of protection. It may be decorative, abrasion-resistant, moisture-resistant, chemical-resistant, or designed for formwork. A glossy face can hide a weak core, so buyers should not judge Laminated Plywood sheets from the surface alone.
Core species matter. Birch and hardwood cores usually offer better screw holding, cleaner edges, and stronger load performance. Poplar cores are lighter and often more affordable, while marine plywood and BWP plywood are used when moisture resistance is a priority. A void-free core is valuable when Laminated Plywood sheets will be routed, screwed, edge-banded, or left with exposed edges. Poorly bonded plies, core gaps, and uneven veneer thickness can cause warping, screw pull-out, or weak joints. Good Laminated Plywood sheets should therefore be specified by core type, not just surface color.
Different surface materials make Laminated Plywood sheets suitable for different problems. HPL is the stronger choice for commercial counters, restaurant furniture, school tables, and high-contact cabinetry because it handles abrasion, impact, and frequent cleaning better than budget overlays. Melamine faced plywood is cost-effective for wardrobes, cabinet interiors, shelves, and dry indoor furniture.
Waterproof PVC Plywood uses a PVC film or PVC surface to improve moisture-focused decorative performance. It is useful for humid interiors, wash areas, and low-maintenance panels, but the buyer still needs to verify the core and edge treatment. Laminated Polyester Plywood for Outdoor Decking is more specialized because outdoor panels must handle UV exposure, standing moisture, foot traffic, and surface wear.
Phenolic film is commonly chosen for formwork, trailer flooring, workshop surfaces, or industrial panels where abrasion and repeated use matter more than a furniture-style finish. For Laminated Plywood sheets, the right surface depends on the job, not on which option sounds most premium.
Surface Type | Best Use | Main Strength | Main Limitation |
HPL | Counters, worktops, commercial furniture | High wear and impact resistance | Higher cost and harder trimming |
Melamine | Cabinets, wardrobes, dry interiors | Affordable and clean-looking | Lower impact resistance |
PVC film | Humid decorative panels | Water-resistant surface | Core and edges still need protection |
Polyester laminate | Outdoor decking and exposed panels | Weather and wear-focused finish | Needs compatible outdoor-rated core |
Phenolic film | Formwork, industrial panels | Durable and moisture-tolerant | Limited decorative appeal |
A water-resistant face does not make Laminated Plywood sheets fully waterproof. Moisture usually enters through cut edges, screw holes, joints, damaged corners, or unsealed backs. Even high-quality Laminated Plywood sheets can fail if the face is protected but the edge remains raw. MR plywood is suited to indoor humidity, not constant water exposure. BWP plywood and marine plywood use more durable bonding systems for wet or exterior-adjacent conditions, but they still need sealing when exposed to repeated moisture. The strongest specification combines the correct core, adhesive system, surface layer, and edge banding.
Indoor furniture needs stable panels that stay flat, cut cleanly, and hold screws without splitting. For cabinet carcasses, 18mm Laminated Plywood sheets are common because they balance rigidity, weight, and machining ease. Thinner panels can work for backs, drawer bottoms, decorative wall areas, or light-duty partitions. Surface choice for Laminated Plywood sheets depends on how the furniture will be used. Melamine faced plywood is usually enough for wardrobe interiors, storage shelves, and low-contact cabinet parts. HPL is more sensible for kitchen fronts, office desks, reception counters, and areas that face frequent wiping or impact.
Wet areas expose panels to steam, splashes, leaks, and cleaning chemicals. Laminated Plywood sheets used near sinks, bathrooms, laundry rooms, or utility spaces should not rely on the surface film alone. The core should be moisture-appropriate, and all cut edges should be sealed. MR grade may handle normal indoor humidity, but it is not the right choice for repeated wetting. BWP plywood, marine plywood, or Waterproof PVC Plywood is safer where water exposure is expected. Edge banding, sealed screw holes, raised bases, and good ventilation are still necessary to reduce swelling and delamination.
Outdoor decking creates a harsher test for Laminated Plywood sheets than indoor furniture. Panels face rain, ultraviolet light, thermal movement, abrasion from shoes, and moisture trapped beneath the surface. Laminated Polyester Plywood for Outdoor Decking should therefore be evaluated by surface texture, UV resistance, slip resistance, drainage design, and core bonding quality.
Decking panels also need structural support. A strong surface cannot compensate for weak joist spacing, poor ventilation, or unsealed cut edges. When Laminated Plywood sheets are used outside, the underside and edges deserve as much attention as the top face.
Commercial spaces have a different pressure profile. A restaurant counter, retail display, school table, or hotel fixture may stay indoors but face heavy impact, aggressive cleaning, and constant contact. In these cases, HPL or phenolic film often gives better long-term value than a cheaper decorative laminate.
Thickness for Laminated Plywood sheets should be chosen by load, span, fixing method, and visual expectation. A 6mm sheet suits backing panels, lightweight decorative skins, and cabinet backs, but it should not carry heavy loads. Panels around 9mm to 12mm work for drawer bottoms, wall cladding, light partitions, and furniture parts with adequate support. For cabinet structures, shelves, and general furniture builds, 15mm to 18mm Laminated Plywood sheets are usually more practical. They feel solid, accept hardware better, and resist bending more effectively across moderate spans. For worktops, benches, commercial counters, or structural platforms, 21mm to 25mm panels may be justified.
Actual performance is not controlled by thickness alone. A high-ply birch core can outperform a thicker low-grade panel with gaps and uneven plies. When load matters, check core construction as carefully as the nominal measurement.

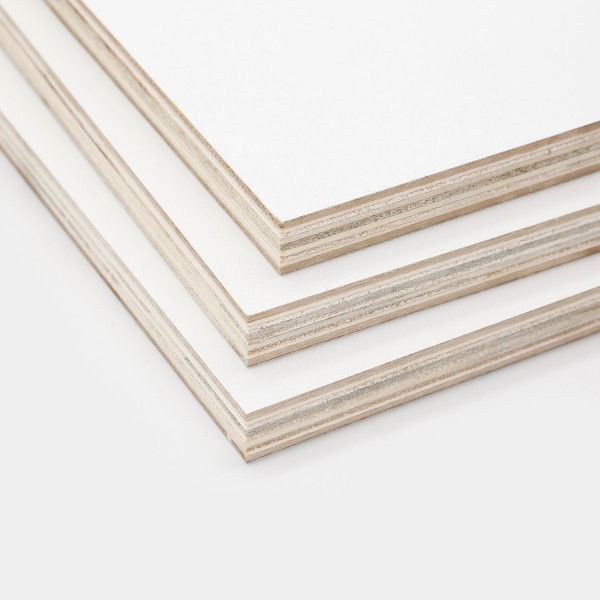

Ply count affects stability, edge appearance, and machining behavior. A panel with consistent veneer layers usually cuts cleaner and holds fasteners more reliably. Laminated Plywood sheets with core gaps can reveal dark cavities at the edge, create weak screw zones, or cause surface telegraphing under pressure. Balanced construction is another overlooked detail. If only one face has a heavy laminate and the reverse side is not balanced, the board may cup or bow as humidity changes. Better panels use compatible backing layers or balanced face construction to control movement.
Edge construction is critical when the design exposes plywood stripes or requires routing. Birch or hardwood cores give a cleaner architectural edge, while low-cost mixed cores may need PVC or ABS edge banding to hide irregular layers. For wet or commercial use, edge banding should be treated as performance protection, not decoration.
Indoor buyers should ask about formaldehyde emission and VOC compliance. TSCA Title VI, CARB Phase 2, E0, E1, or low-emission documentation can be important for furniture, schools, offices, hotels, and export projects. A supplier that cannot identify the emission class may not be suitable for sensitive indoor work.
Bonding standards provide another layer of confidence. EN 314 relates to plywood bond quality, while EN 636 helps classify plywood by service conditions such as dry, humid, or exterior environments. These standards help buyers avoid vague claims such as “waterproof” or “premium quality.”
A reliable order for Laminated Plywood sheets should include more than size and color. Specify surface material, core species, sheet thickness, glue type, moisture grade, emission class, edge treatment, and intended use. Clear specifications prevent suppliers from substituting a cheaper panel that looks similar but performs differently.
Cutting is where many expensive panels are ruined. Laminated Plywood sheets can chip when the saw teeth lift the face layer, especially on brittle HPL, melamine, or phenolic film. A fine-tooth blade, track saw, scoring pass, masking tape, and zero-clearance support can greatly reduce tear-out.
Feed rate should be steady rather than forced. Router trimming works best with sharp flush-trim bits and firm support under the workpiece. When installing Laminated Plywood sheets, pre-drill hardware points near edges to reduce splitting and avoid over-tightening screws through the laminate surface.
Bubbles and peeling usually come from poor bonding conditions. Dust, excess moisture, uneven adhesive, missed open time, or weak pressure can prevent proper contact between laminate and plywood. When applying laminate manually, use the correct adhesive, respect tack time, align with separation strips, and press from the center outward with a J-roller. Warping often begins before installation. Panels stored upright, exposed to sun on one face, or laminated unevenly can develop stress. Balanced storage and balanced surface construction reduce this risk.
Edge swelling is the most predictable failure in wet spaces. Use PVC or ABS edge banding, seal drilled holes, protect exposed cuts, and avoid letting panels sit directly in water. Laminated Plywood sheets last longer when the installer treats edges, backs, and joints as part of the moisture system.
MDF and particleboard are flat and economical, but they are weaker in screw holding and more vulnerable to moisture damage. WPC and PVC boards can perform well in wet decorative areas, yet they may lack the stiffness or fastener strength needed for furniture structures. Compact laminate is extremely durable, but it is expensive, heavy, and harder to fabricate with standard woodworking tools.
Laminated Plywood sheets sit between these options. They offer better structural confidence than many fiberboards, more design flexibility than solid plastic panels, and easier workshop fabrication than compact laminate. For many projects, Laminated Plywood sheets deliver the best balance of strength, finish, workability, and cost.
Choosing laminated plywood starts with matching the panel to the environment, load, surface wear, and moisture risk—not simply selecting by color or price. The right Laminated Plywood sheets should combine a stable core, suitable surface finish, proper thickness, and sealed edges to reduce problems such as swelling, chipping, or delamination. Shouguang Sunrise Industry Co.,Ltd. provides options such as Waterproof PVC Plywood and Laminated Polyester Plywood for Outdoor Decking, helping buyers select panels that fit practical construction, furniture, and outdoor-use requirements with better durability and easier project planning.
A: Laminated Plywood sheets are used for cabinets, wardrobes, shelves, wall panels, shopfitting, worktops, and some moisture-resistant applications, depending on the core, surface layer, and edge sealing.
A: Laminated plywood can resist moisture, but it is not automatically waterproof. Water resistance depends on the core grade, glue type, surface material, and sealed edges.
A: HPL is more durable for impact, wear, and commercial use, while melamine is usually more economical for dry indoor cabinets, closets, shelving, and furniture panels.
A: Waterproof PVC Plywood can suit humid interiors, but cut edges, screw holes, and joints still need sealing to reduce swelling, peeling, or moisture-related damage.
A: It can work for outdoor decking when paired with a weather-rated core, anti-slip surface, sealed edges, proper drainage, and enough structural support underneath.
A: Use thinner sheets for backs and panels, 15–18mm for cabinets and shelves, and thicker boards for worktops, heavy-duty furniture, or supported decking structures.
